3sixty RotaSpin
Unmatched quality with 9-color printing

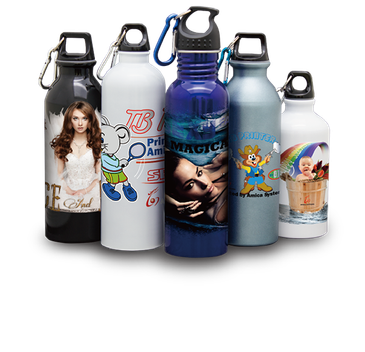

3sixty RotaSpin is an industrial UV-LED inkjet printer developed by AMICA with dual operation stations for double print productivity. 3sixty RotaSpin is specially engineered for high-efficiency 360° seamless printing on tapers/cylinders, such as cups, bottles, tins, and cans. 3sixty Rotapin realizes stable, reliable, effi cient and high-quality printing with comprehensive technologies.
With Variable Droplet Size control technology and light color printing, 3sixty RotaSpin is specialized in producing soft skin tones, smooth gradients and vivid images on tapers/ cylinders, not being achieved with other printing technologies.
Highlighted by simplified workflow and easy operation, 3sixty RotaSpin boosts up the print productivity, earning the reputation as an ideal choice for various emerging markets in short- & medium-run printing, customized
and personalized printing, package proofing applications, etc
RotaSpin can be delivered with Ricoh Gen 4 print heads or you can choose the faster version RotaSpin Pro and get the Ricoh Gen 6 print heads with fantastic quality and even fast print speed!!
Dual stations accomplish high-efficiency production
3sixty RotaSpin achieves high-effi ciency double productivity of short- & medium-run taper/ cylinder decoration featuring twin-job simultaneous printing and dual operation stations for loading, printing, curing and unloading. The advanced print head control technology designed for twin-job printing doubles the production efficiency without compromising the printing quality.
The maximum printing length of 3sixty RotaSpin is 330mm; it allows printing onto objects of 40-130mm in diameter and 0-360mm in length. You can configure fixtures connected to the dual angle adjusted connectors to meet specific demands, including cylindrical thermos bottles, cosmetic containers and tea cans, as well as tapered open cups, making the possibilities for inkjet printing endless.
9-color printing technology brings amazing printout
With additional ink colors, our 9-color printing technology empowers 3sixty RotaSpin with brilliant and amazing printout. Light cyan and light magenta inks well present smooth gradations and light tones. Amica’s high density white ink delivers vibrant and exceptional image quality on transparent, colored or black materials with less ink consumption. Varnish ink printing provides versatile surface finishes with amazing tactile and visual e ects to beautify the appearance of objects and grasp viewers’ attention.
Automatic Print Head Protection System monitors whether the print heads will be scratched or exposed to UV lights, and immediately stops the movement of the carriage in case of the emergency situations, effectively ensuring the safety of print heads.
Based on an all-in-one design concept, the small and compact Print Head Maintenance Module allows automatic purging, wiping and capping for convenient unattended operation.
Automatic Ink Supply System monitors and controls ink levels of the main/ sub ink tanks with liquid level sensors.
We offer a range of UV curable inks with bright colors, as well as advantages of excellent hardness, durability and scratch, chemical, and water resistance. Specifically developed for direct printing on tubes.
Customized Printing Methods & Algorithms
Through relentless exploration and practice, we have developed 3sixty RotaSpin, integrated multiple proven and innovative technologies of great significance to achieve perfect print output effects on tapered/ cylindrical objects, be it metal, glass, wood, plastic, paper and many more.
- Thanks to the Rotational Print Pass Method (RPPM) and Special Print Head Arrangement Method, 3sixty RotaSpin is endowed with amazing print productivity and quality for simultaneous printing of 2 tapered/ cylindrical objects.
- Ink Droplet Conversion Algorithm realizes consistent resolutions and stable visual effects in different objects tubes, ideal for printing tubes even with small sizes.
- Ink Droplet Compensation Algorithm for taper printing ensures even image density on different sections of the taper and avoiding image deformation.
- Combining special algorithms, 3sixty RotaSpin thoroughly eliminates gaps or overlaps of images in 360° seamless printing.
- 3sixty RotaSpin supports Colorful Variable Data Printing, including logos, images, texts, numbers, codes, etc.
Specifications
Print System | DOD piezo electric grayscale print heads, automatic voltage and temperature control UV-LED curing system, Automatic Print Head Protection System, Automatic Print Head Maintenance System for purging, wiping and capping |
Part.No | TBX |
Ink system | UV curable C, M, Y, K, White, Varnish, and Primer inks 1L main ink tank for each color Automatic ink supply system Active negative pressure system |
RIP and user interface | ColorPRINT Bottle RIP software (reminder to insert link to software page) Color LCD Display Panel Printer Control Software (PCS) |
Formats | Popular desktop file formats, including; JPEG, TIFF, EPS, and DCS |
Media Type | White/ black/ colored tapers and cylinders Metal, plastic, paper, wood, glass, etc |
Connectivity | Gigabit Ethernet interface |
Angle | -4.5° to 11° |
Tube size | Length: 0 - 360mm (0" - 14.17") Top Diameter: 40 - 130mm (1.57" - 5.12") Bottom Diameter: 40 - 130mm (1.57" - 5.12") |
Rotary Degree of tubes | 360° |
Printable size | Feeding direction (R-axis): entire surface of the tubes Printing length (Y-axis): within 330mm (12.99") |
Printer Dimensions | Width: 2200mm (86.6") Depth: 1050mm (41.3") Height: 1612mm (63.5") |
Image size | 260.4mm * 119.9mm (10.25" * 4.72") |
Print Resolution | 600 * 900 DPI |
Color | Productivity (Production Mode, Quality Mode) | CMYKLcLm | 9.5sec, 15sec W + CMYKLcLm | 10.5sec, 17.5sec W + CMYKLcLm + V | 16.5sec, 27.5sec |
Operational Environment | Temperature: 16-28°C (61-82°F) Humidity: 40-70% (Recommended) Altitude: Up to 1000m (3281ft) Electrical: Single phase 220V±10% (50/ 60Hz, AC); 15A; 3300W |
